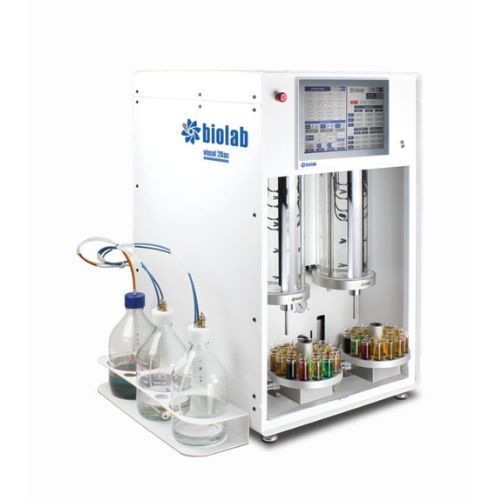

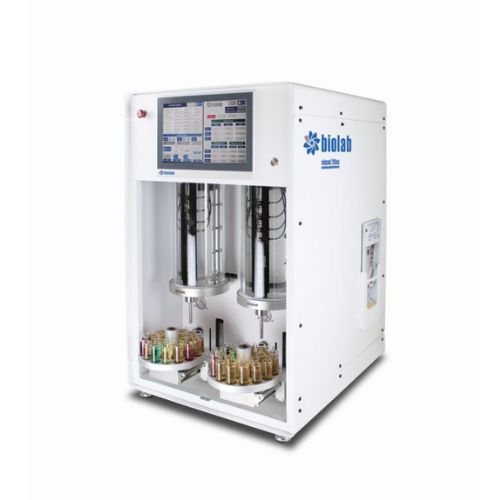

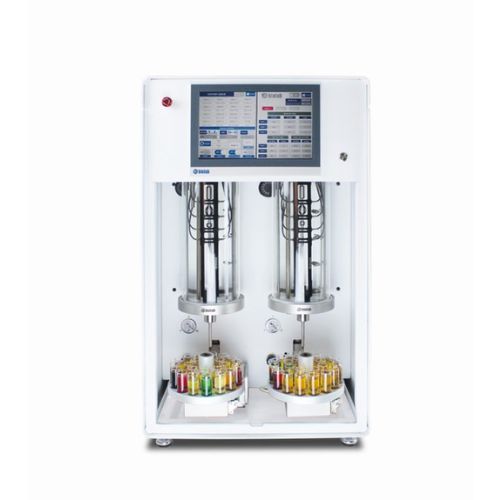

Biolab Dual-Bath Kinematic Viscometer Viscol-20AS
Viscol-20AS is a fully automated dual-bath kinematic viscometer according to ASTM D445/D446 for kinematic viscosity measurements of all newtonian type fluids. The unit is equipped with two seperate baths for measurements at 40C and 100C simultaneously and each bath has 23 position autosampler unit.
Dual-Bath Kinematic Viscometer Features:
- Simultaneous measurements at two different temperatures
- Fully compliant kinematic viscosity measurements with ASTM D445 and all related standards
- Contactless sample detection
- Temperature range from 10°C to 120 °C
- Wide range (170-225 Fold) viscometer tubes
- Viscosity detection from 0,5 cSt to 25.000 cSt
- Full automatic operation
- Dual solvent usage as a standard
- Automatic cleaning with low solvent consumption
- Easy tube replacement
- Full control from Windows based touch panel PC
- Low bath oil and over temperature warnings
- Small footprint
Areas of Use:
- Mineral and base oils
- Residual and used oils
- Light and heavy fuels
- Crude oil
- Marine fuels
Description
|
Measurement range
|
0.5 cSt – 25000 cSt
|
|
Viscometer type
|
Ubbelohde
|
|
Temperature range
|
10°C to 120 °C
|
|
Temperature precision
|
0.001 °C
|
|
Time detection precision
|
0.001 s
|
|
Sample volume
|
10-15 mL
|
|
Data transfer
|
USB & PC
|
|
Weight
|
90 Kg
|
|
Dimensions
|
60 x 50 x 80 cm
|
|
Power requirement
|
220 VAC – 50 Hz
|
Additional Information
| Make | Biolab |
|---|---|
| Method | ASTM D445, ASTM D446, IP 71, ISO 3104, ISO 3105 |
