Flucon eps (inline Fluid Dielectricity Monitor)

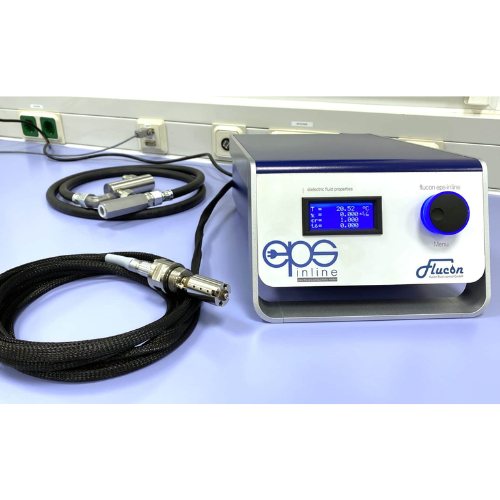

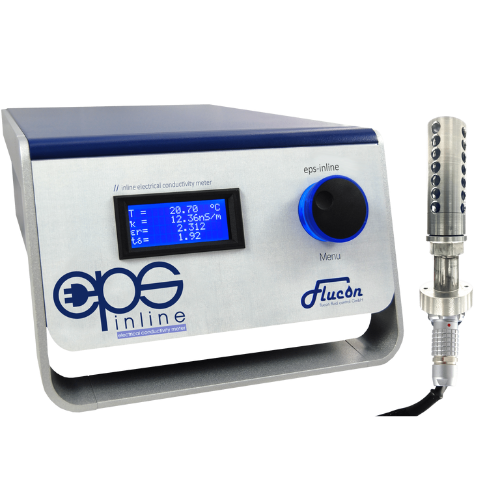

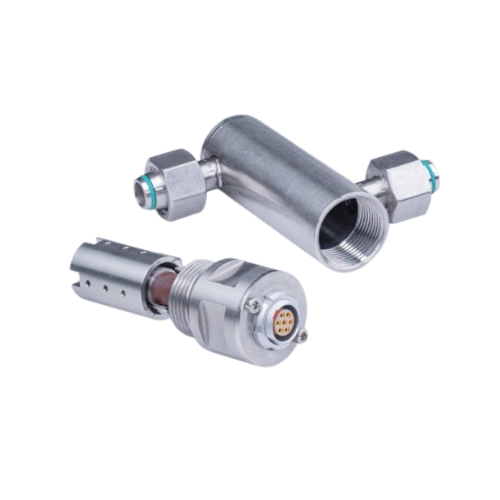

The eps-inline consists of an intuitively operated electronic unit in a compact housing and a screw-in sensor based on a tubular capacitor, optimized for flow-through measurement. Using a G 3/4″ thread (and a suitable flow-through chamber if necessary), this can be easily integrated into your pipe or storage tank.
This instrument allows you to continuously determine the following parameters of your flowing media:
- specific electrical resistivity/specific electrical conductivity (20 pS/m – 500 uS/m),
- dielectric constant (1 – 10),
- dielectric dissipation factor as well as
- temperature.
Description
Versatile for installation and operation
With eps-inline, the measurement is independent of the flow shape, so that the robust stainless steel sensor offers the greatest possible installation flexibility. The device has both a data interface (RS-232 / USB) and analog outputs (0…10 V / 4…20 mA), which can be used to transmit the measured values to your PC or PLC.
Wide range of applications

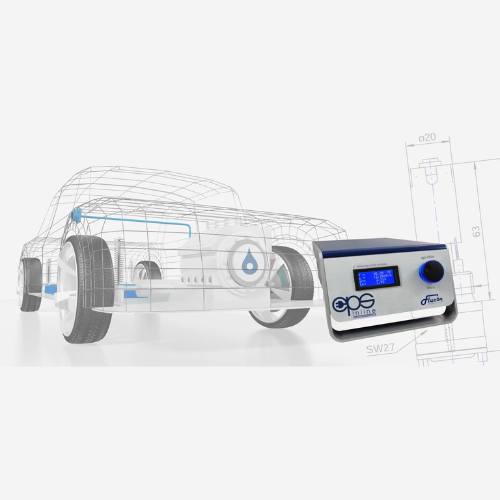

The eps-inline can be used wherever the (di)electric properties of a flowing fluid are relevant. This includes, for example, applications in the field of electric and hybrid drives as well as applications with lubricating and gear oils, coolants, electrolytes or other operating fluids.
Additional Information
| Make | Flucon |
|---|
