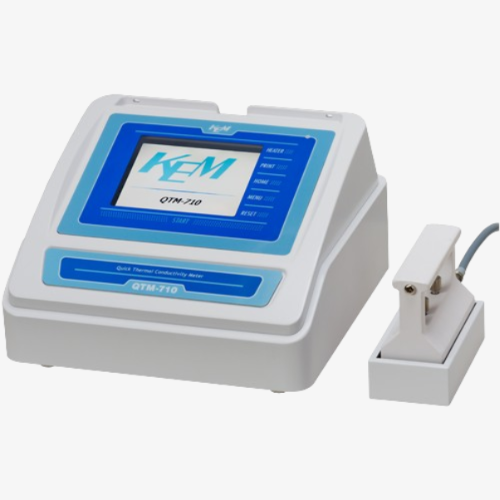

Quick Thermal Conductivity Meter QTM-710/QTM-700
The QTM-710/QTM-700 is an advanced, portable, and highly efficient thermal conductivity meter designed for rapid and precise measurement of thermal conductivity in a wide range of materials. Offering fast measurement times and exceptional accuracy, these meters are ideal for on-site testing and laboratory environments across various industries, including manufacturing, construction, research, and more.
Key Features:
-
Fast Measurement: Capable of delivering accurate thermal conductivity readings in just a few seconds, significantly reducing testing time.
-
Wide Measurement Range: Designed for testing materials ranging from metals, plastics, and ceramics to liquids, powders, and insulation materials.
-
User-Friendly Interface: Simple and intuitive design with a large LCD display for easy reading of results.
-
Non-Destructive Testing: The meter allows for testing without damaging or altering the sample, preserving material integrity.
-
Compact & Portable: Lightweight and portable design for convenient field use or mobile testing applications.
-
Advanced Technology: Incorporates advanced heat flow and temperature differential methods for precise thermal conductivity values.
-
Data Logging & Connectivity: Models offer optional data storage, USB connectivity, and software integration for easy data logging, analysis, and reporting.
Description
Applications:
-
Materials Science & Engineering: Used for research and development of materials with specific thermal properties.
-
Manufacturing & Quality Control: Ideal for ensuring thermal performance in materials used in insulation, electronics, and construction.
-
Construction Industry: Used to assess insulation materials, concrete, and building materials for energy efficiency evaluations.
-
Automotive Industry: Measures the thermal conductivity of components to optimize heat dissipation in engines and electronic systems.
-
Energy & Environmental Applications: Suitable for testing energy-saving materials and environmental impact assessments of thermal properties.
Models:
-
QTM-710: Standard version for general applications.
-
QTM-700: Premium model with additional features such as higher accuracy and extended temperature range.
The QTM-710/QTM-700 provides a convenient and reliable solution for measuring thermal conductivity, making it an essential tool for industries requiring fast, accurate, and non-destructive testing of thermal properties.
Specification:
| Type | Quick Thermal Conductivity Meter |
|---|---|
| Model | QTM-710 / QTM-700 |
| Method | Hot Wire Method |
| Accuracy*1 | Within ±5% reading value per reference plate*2 (room temp. only) |
| Repeatability*1 | 3% (at the measurement of reference plate) |
| Thin film measurement | QTM-710 : Able QTM-700 : Unable |
| On-window display | 5.7 inch color LCD |
| Language | English / Japanese / Chinese / Korean |
| External I/O | RS232C : 2ch (Printer, Data Acquisition Software) USB : 2ch (Printer, USB flash drive) |
| Ambient conditions | Temperature : 5 to 35℃ Humidity : 85%RH or below (no condensation) |
| Power supply | DC24V 5A (main unit), AC100-240V±10% 50/60Hz (AC adaptor) |
| Dimensions | 262(W)×276(D)×158(H)mm |
| Weight | Approx. 4kg |
| CE marking | CE marking (EN61326-1, EN61010-1), suitable for RoHS |
Additional Information
| Make | KEM |
|---|---|
| Method | ASTM C177, ASTM D5334, ASTM E1952, ASTM E1956 |
