Tanaka Automated Cloud Point Tester for sufactants

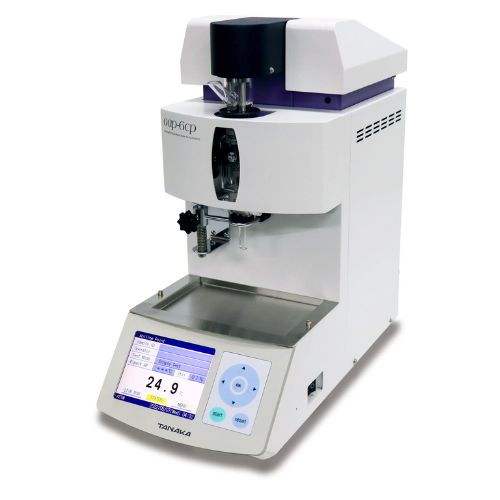

Model aap-6cp automates the cloud point test of nonionic surfactants.
- Ergonomically color-coordinated display for high visibility and intuitive switch operation.
- Enhanced versatility including Ethernet for LIMS, USB port for flash memory or keyboard, password protection and data storage (max.200 results).
- All-in-one chassis design: compact, light weight and premier exterior.
User-friendly measuring cell
The measuring cell can be easily removed and water jacketed meauring cells are also available as an option for sub-ambient temperature.
Easy operation
Just sample the specimen, enter the expected cloud point，and press the START key; all the rest of the test procedures such as eating,
cooling and cloud point detection are performed automatically.
Download Brochure
Description
| Related Test Methods | ASTM D2024 |
|---|---|
| Samples | Nonionic surfactants |
| Measuring Range | Ambient +20 to 90 ℃ (194 ℉) For below ambient + 20 ℃, use the optional water jacketed measuring cell and a cryostat. |
| Temperature Sensor | Pt100 in stainless steel sheath |
| Cloud Point Detector | Photo-electric cell, with special detection circuitry |
| Measuring Cell | Modified U-Tube type. Vacuum jacketed glass cell with PTFE stopcock at the bottom for drainage. |
| Display | 5.7 inch color LCD with LED back light |
| Heater | Immersion heater in stainless steel sheath: 20W |
| Sequence Control | By an on-board microcomputer |
| Test Mode | Cloud Point Test, Manual Temp Set |
| I/O Ports | Ethernet x 1 for LIMS USB x 1 for Flash Memory or Keyboard RS-232C x 1 for PC or Optional Printer |
| Safety Mechanism | Automatically shuts off and the problem is reported by buzzer and display, in case: (a) ECP+10 ℃ is reached (b) Temperature sensor is found defective (c) Light projector or receiver is found defective (d) Built in battery is found drained out. (e) Control computer runs away (no display) |
| Size （W x D x H） | 230W x 470D x 490H (mm) |
| Weight | 14 kg |
| Installation Environment | RT: 10 to 40 ℃ RH: Less than 90% |
| Power Supply | AC100 V to 240V 200 VA (max) 50 / 60 Hz |
| Standard Accessories |
|
| Optional Accessories |
|
| Suggested spares |
|
Additional Information
| Make | Tanaka |
|---|---|
| Method | ASTM D2024 |
