Zematra Total Sediment Tester

Zematra Total Sediment Tester
Accurate and Reliable Sediment Testing

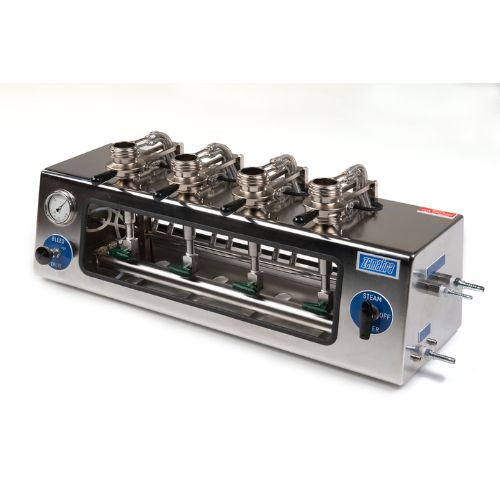

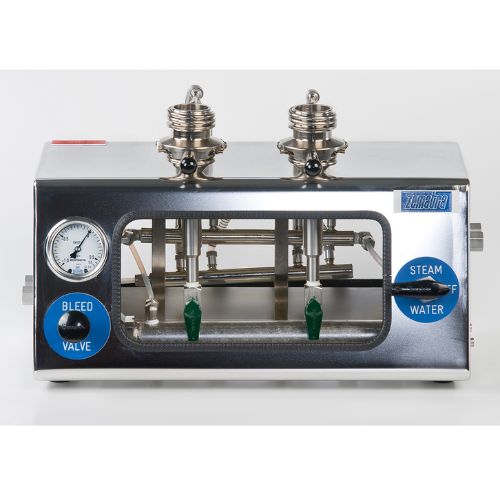

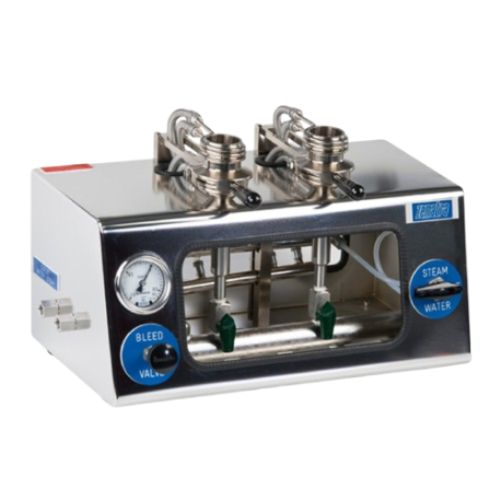

The Zematra Total Sediment Tester is a versatile instrument designed to quantify insoluble substances in both distillate and residual fuel oils. It offers accurate measurements, customizable configurations, and a range of features for efficient and reliable testing.

Key Features:

Standards Compliance: Adheres to ASTM D4870, IP375, and ISO 10307 standards.
Versatile Configurations: Available in two, four, or six-position filtration cells to suit different testing needs.
Vacuum Circuit: Equipped with a gauge and integrated cooling/heating system for optimal performance.
Accurate Sediment Detection: Measures sediment content up to 0.40% m/m for distillate fuels and 0.50% m/m for residual fuels.
Wide Viscosity Range: Handles viscosities up to 55 cSt at 100°C.
Optional Accessories: Offers sintered brass discs and complementary equipment for enhanced testing capabilities.

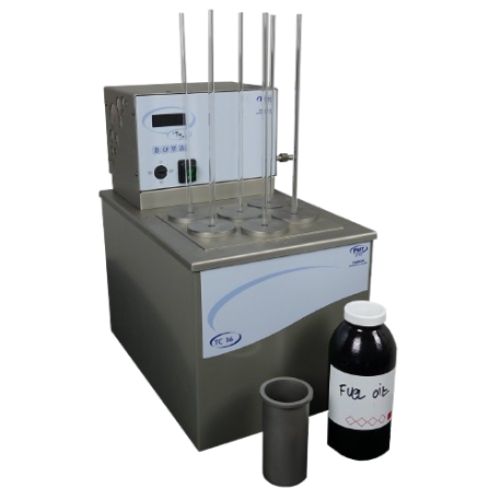

Aging Bath (Optional): Provides thermal treatment of samples for specific testing needs.
Technical Specifications:

Sediment Content Detection:
Distillate fuels: up to 0.40% m/m
Residual fuels: up to 0.50% m/m
Viscosity Range: Up to 55 cSt at 100°C
Configuration: Two, four, or six-position filtration cells
Vacuum Circuit: Integrated with gauge and cooling/heating system
Aging Bath (Optional): Six or fifteen positions
Dimensions and Weight: [Insert dimensions and weight specifications]
Benefits:

Accurate Sediment Measurement: Provides reliable and precise measurements of insoluble substances.
Versatility: Offers various configurations to suit different testing requirements.
Efficiency: Streamlines testing processes with the integrated vacuum circuit and aging bath.
Standards Compliance: Ensures adherence to industry standards for accurate and reliable results.
The Zematra Total Sediment Tester is an essential tool for industries dealing with fuel oils, providing accurate and reliable sediment measurements. Its versatile features, accurate results, and compliance with industry standards make it a valuable asset for quality control and research applications.
