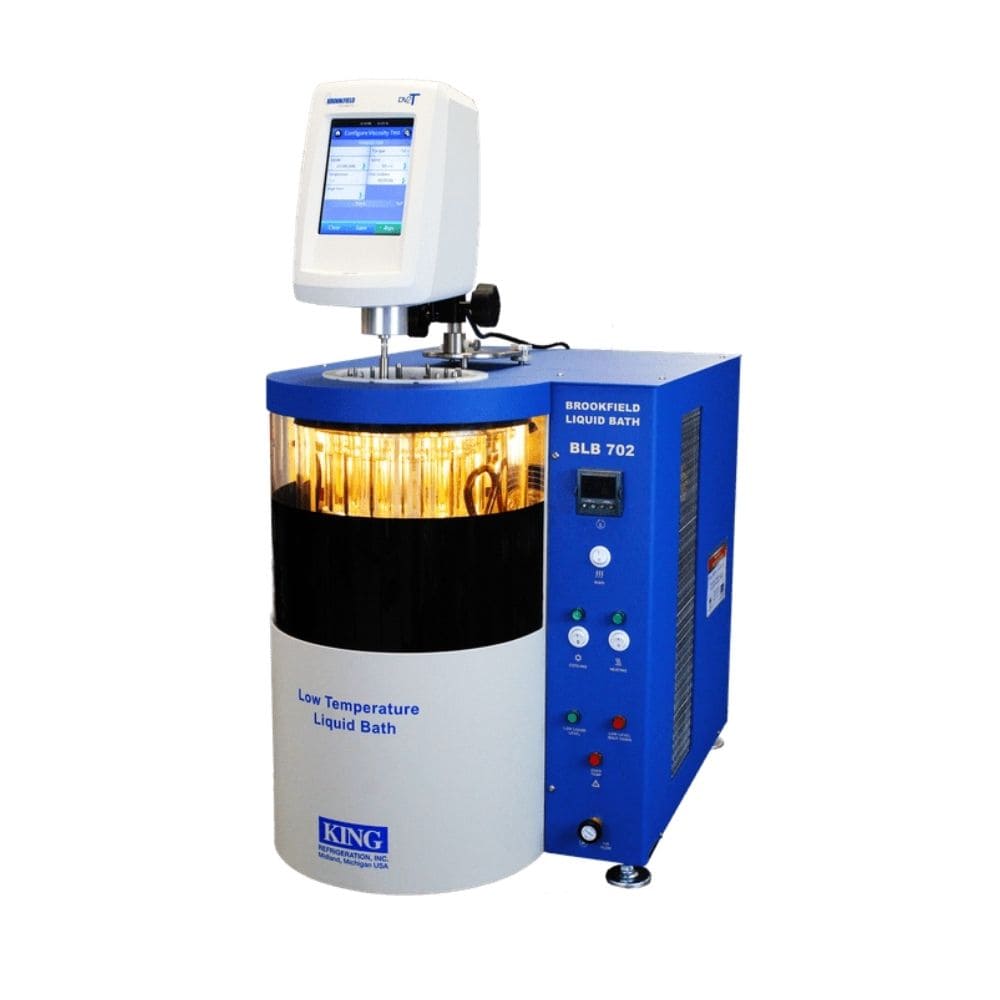

Tannas Brookfield Liquid Bath
The King BLB liquid bath is available in (3) models based on your temperature needs and can run multiple test methods with different hardware configurations.
Low-Temperature Viscosity:
– The King BLB tests low-temperature viscosity of ATF’s, gear oils, hydraulic fluids, and other fluid lubricants using a rotational viscometer mounted on the bath top after cooling to a predetermined test temperature based on the desired test method (D2983, DIN 51398, IP267).
– Unique Tannas SimAir® Test Cells provide proper sample temperature control for accurate, precise results and permits each test cell to operate independently, increasing productivity for D2983 and IP 267 testing.

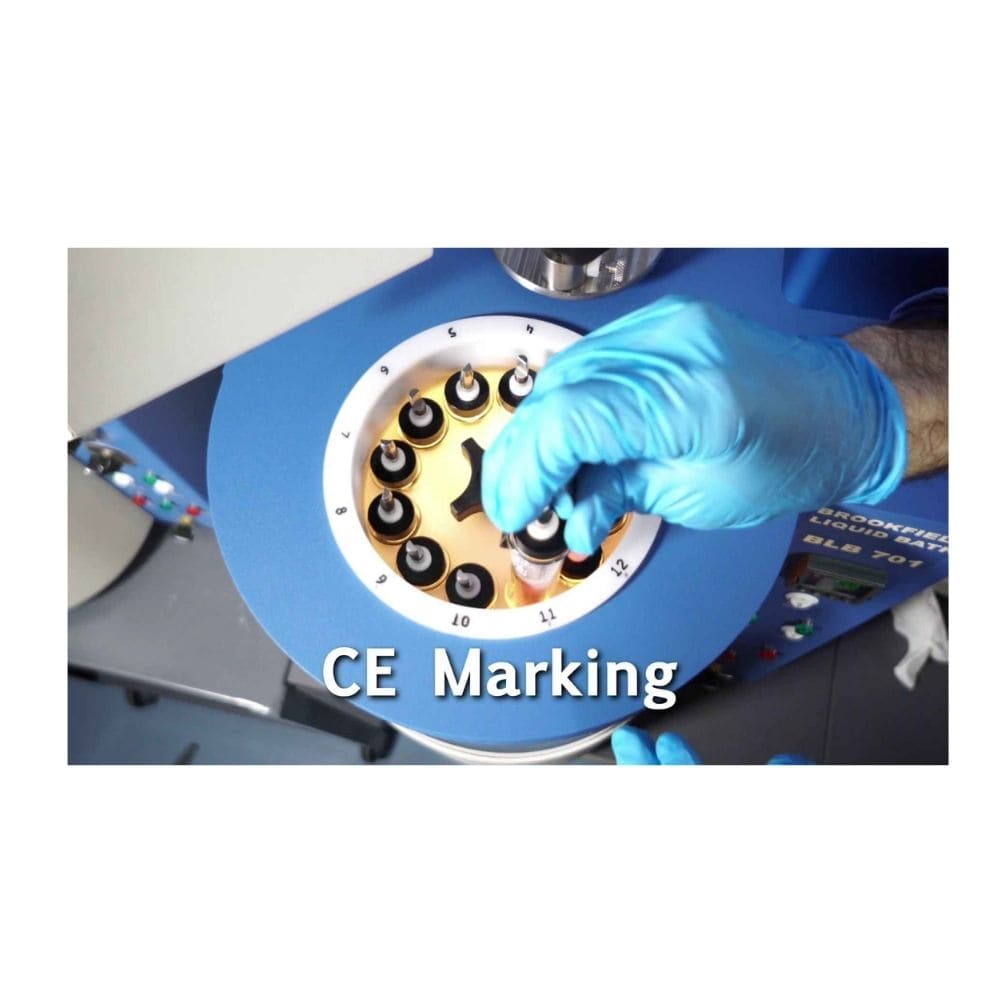

– Features a 12-position carousel.
King Cloud & Pour Point Bath:
– The King BLB can measure low temperature Cloud & Pour Point tests of petroleum products – an index of the lowest temperature of its utility for certain applications. The BLB offers the manual D97, D2500, and D5853 testing techniques and a self-contained refrigeration system with ramp/soak temperature programming ability. The King instrument is a cost-effective and user-friendly alternative to expensive automated Cloud & Pour Point devices.
Description
Dimensions : Benchtop: 42 x 53 x 66 cm (16.5 x 21 x 26 inches)
(W x D x H)
Weight : ~68 kg | (150 lbs.)
Voltage :
BLB 701: 220 VAC, Fused: 10 amp.
BLB 702: 220 VAC, Fused: (2) 10 amp.
BLB-DIN: 220 VAC, 12 amp. max startup
6 amp. nominal running
Frequency : 50 or 60 Hz., Single-Phase
Cooling Capacity : 600 Watts at 0°C | 300 Watts at –40°C | 100 Watts at –70°C
Heating Capacity : 600 Watts
Temperature Range :
BLB 701: +30°C to –40°C (86°F to –40°F)
BLB 702: +30°C to –70°C (86°F to –94°F)
BLB-DIN: +30°C to –55°C (86°F to –67°F)
Temperature Control ±0.1°C | Digital readout to 0.01°C for BLB-DIN
Bath Cooling Rate :
BLB 701: 20°C/ hour average
BLB 702: 30°C/ hour average
BLB-DIN: 60°C/ hour average
Refrigerant : R410A (BLB701) | R507 HFC / R508B (BLB702 & DIN)
Compressor : 1/3 horsepower
Viewing Window : ~41 x 23 cm | 16 x 9 inches
Testing Capacity : 12 sample carousel (ASTM 2983)
4 sample carousel (ASTM D97 + D2500)
Bath Size : ~3.8 liters (1 gallon)
Bath Design : Methanol or Ethanol within Dewar flask
Cabinet Material : Powder Coated Aluminum
Safety : High pressure cutout | High temperature limit
Low Level Indicator | Very Low Level Safety Shutdown
CE Mark
Additional Information
| Make | Tannas King |
|---|---|
| Method | ASTM D2500, ASTM D2983, ASTM D5853, ASTM D97, DIN 51398, IP 15, 219, 267, 441 |
